Door Louvres

Bespoke ventilation integrated into your doorset

Bespoke ventilation integrated into your doorset

TS Designs offers a comprehensive range of door louvre solutions, allowing ventilation to be incorporated directly into our doorsets while meeting the individual ventilation, access and security requirements of the project. For our PA1 aluminium doorsets, we can offer standard 500mm square louvres positioned at the top, bottom or both positions within the door leaf, bespoke sized louvres, and maximised louvred configurations where a greater area of ventilation is required.

Where enhanced physical security is required, we can also incorporate LPS 1175 security-rated louvres within our PS2 SR2 and PS3 SR3 security doorsets, providing a complete solution where both ventilation and certified physical security are required.

Market Leading Features

• Louvre solutions across PA1, PS2 SR2 and PS3 SR3 doorsets
• Standard 500mm square louvres
• Top, bottom or top and bottom configurations
• Bespoke louvre sizes available
• Maximised louvred PA1 door options
• LPS 1175 security-rated louvre options for PS2 SR2 and PS3 SR3
• Suitable for single and double doorsets
• Silver anodised and powder-coated finishes available
• Wide range of sizes and configurations

PA1 Aluminium Door Louvre Options

Our PA1 aluminium doorsets offer a high level of flexibility when incorporating ventilation, with louvre sizes and positions tailored to suit the requirements of the building. From standard configurations through to bespoke and maximised louvre arrangements, we can provide the right balance of ventilation, access and appearance for each application.

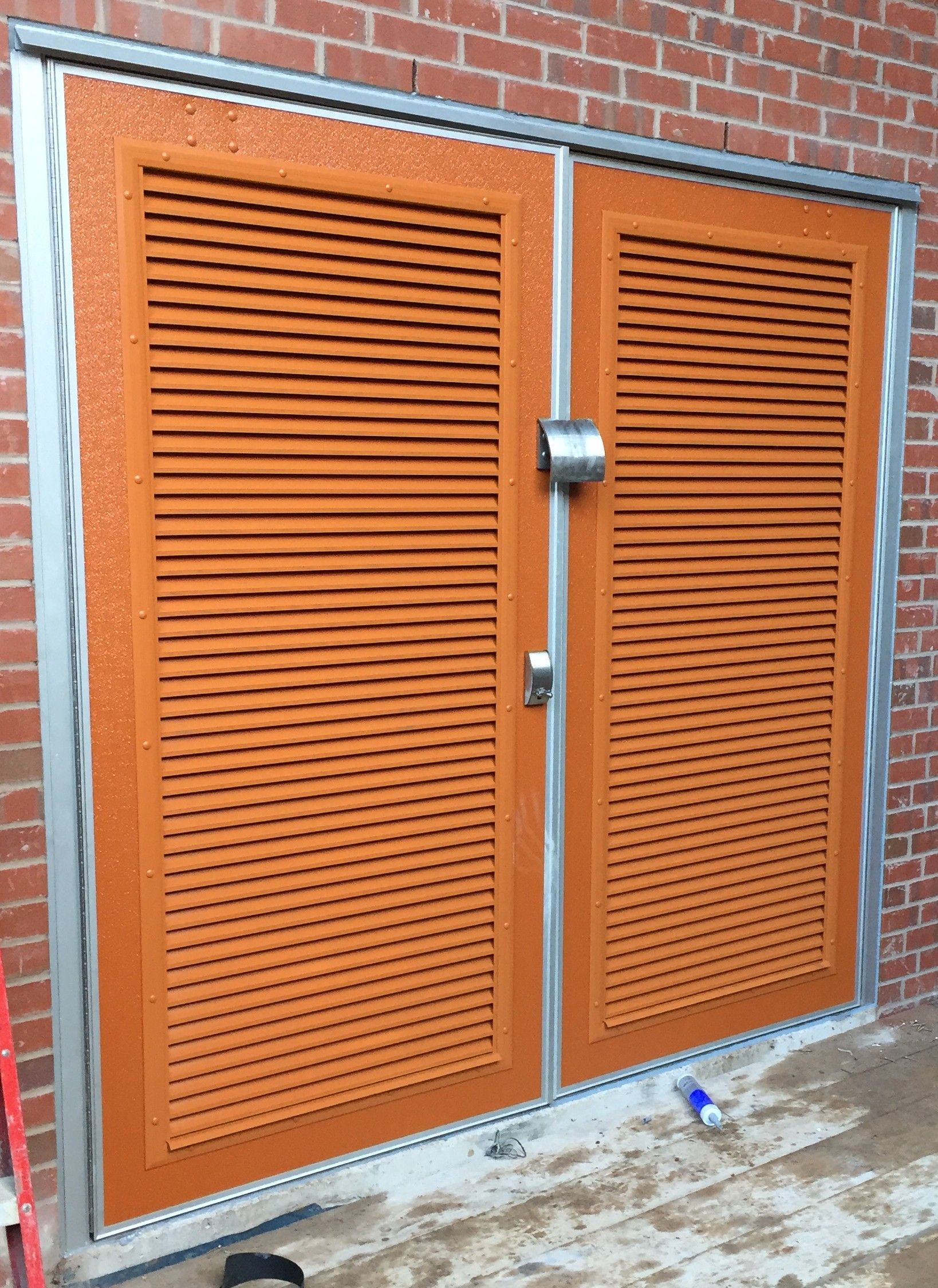

• Maximised Louvred – Large louvre banks designed to maximise the available ventilation area within the door panel.

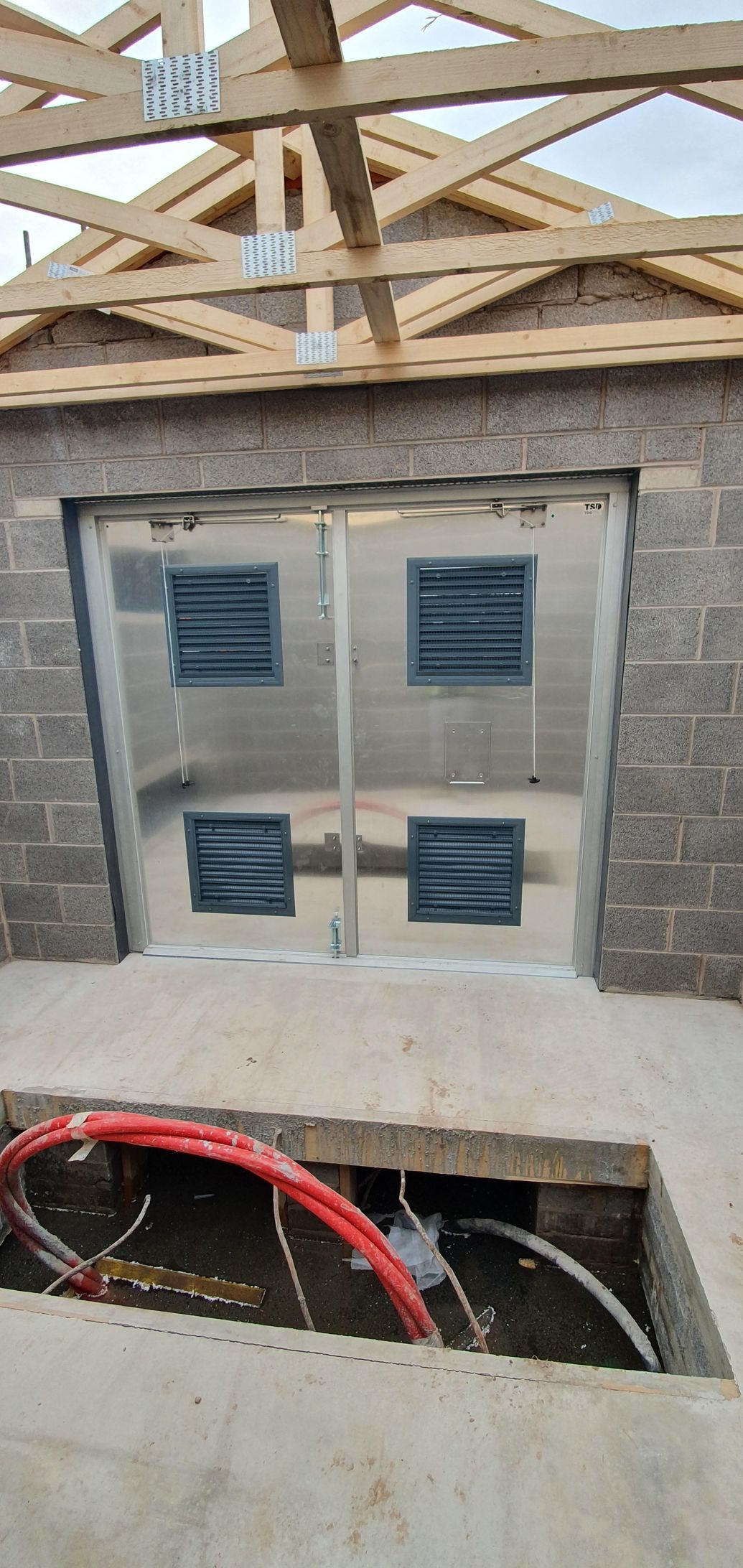

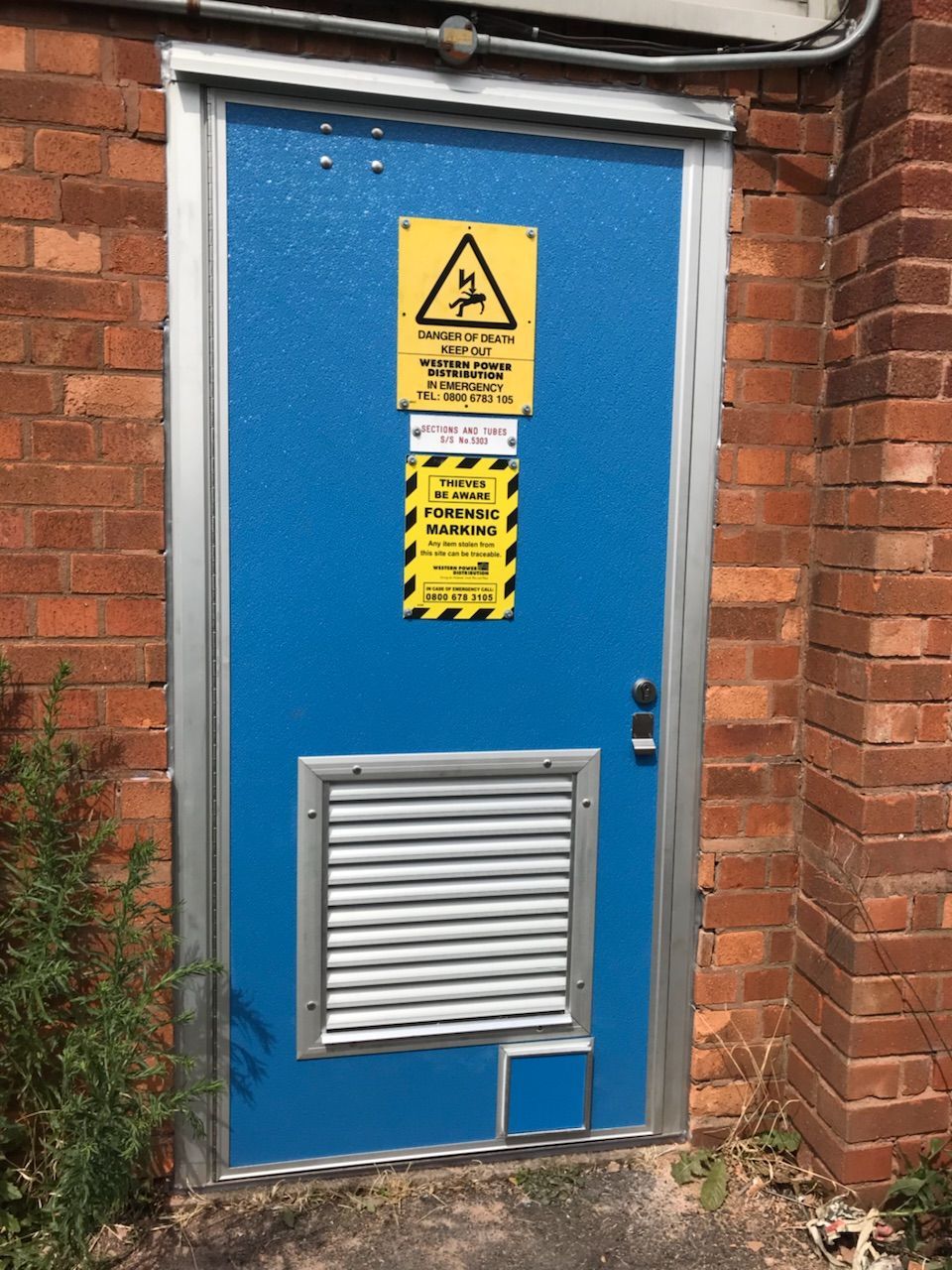

• 500mm Square Louvres – Our standard option, available at the top, bottom or both top and bottom of the door leaf.
• Bespoke Sized Louvres – Manufactured to order

Security-Rated Door Louvres



For applications requiring enhanced physical security, we can incorporate LPS 1175 security-rated louvres within our PS2 SR2 and PS3 SR3 security doorsets, providing permanent ventilation while maintaining the required level of physical security.Designed for demanding and critical infrastructure environments, these louvres provide a robust ventilation solution where resistance to forced entry is an important part of the overall specification. A wide range of sizes is available, from 125mm x 125mm up to 900mm x 900mm as standard, with larger sizes also available where required, allowing the ventilation provision to be tailored to the project and integrated as part of the complete security doorset.

Applications

Typical applications include electrical substations, plant rooms, transformer rooms, switch rooms, utility buildings, bin and cycle stores, service rooms, energy infrastructure, commercial buildings and industrial facilities.

Sizes, Configurations & Finishes

Our door louvre solutions can be tailored around the individual project, with a wide range of sizes, positions and configurations available across both our aluminium and security-rated doorsets. This allows the ventilation requirement to be considered as part of the complete doorset design rather than being restricted to a single standard arrangement. PA1 louvres can be supplied in silver anodised aluminium or polyester powder coated in a wide range of colours. Our LPS 1175 security-rated louvres are also available in a range of sizes and finishes, with optional insect mesh where required, allowing the overall solution to be tailored around the ventilation, security and appearance requirements of the project.



Need ventilation incorporated into your doorset? Whether you require standard square louvres, a bespoke configuration, maximised ventilation or an LPS 1175 security-rated solution, our team can help develop the right doorset around your ventilation, security and access requirements.

Specifications

Market Leading Features

• Contains no organic materials, no ferrous components, and no painted parts. eliminating traditional issues associated with timber doorsets, including rot, warping, twisting, and sticking doors
• Removes the problem of rust associated with steel doorsets.
• Being essentially a modular system, the PA1 is available in virtually limitless configurations.
• In addition to single and double leaf doorsets, we offer a wide range of mullions, transoms, and removable solid or louvred panels to suit almost any application.
• The GRP (Glass Reinforced Plastic) faces are pigmented throughout their full thickness
• If surface damage occurs, the same colour remains visible beneath.
• The pigments used are UV stable for maximum longevity.
• Available in a range of surface textures, the most common specification is our "cracked ice" anti-vandal finish
• Absorbs high levels of vandalism, abuse and everyday wear and tear without visible impact.


Options

• The door core is constructed from two interlocking trays of 3mm aluminium sheet filled with inert polyurethane foam.

• This closed-cell, non-hygroscopic foam provides excellent thermal performance, delivering the compressive strength required to withstand significant impact and attack



• Every door leaf is mounted on a full-length heavy-duty continuous stainless-steel hinge, providing exceptional durability and long-term reliability.


Configurations

• Single leaf outward opening security doorsets with or without side/over panels

• Double leaf outward opening security doorsets with or without side/over panels

Min/Max Structural Opening Sizes

Options

• Hinged or removable over panels, with removable transoms

• Hinged or removable side panels, with removable mullions

• Vision panels to customer preferred size or fully maximised

• Louvre vents to customer preferred size or fully maximised. With or without insect/vermin mesh

• Cable access ports

Leaf Construction

• Leaf thickness: 44mm

• Leaf construction: two 3mm aluminium interlocking trays

• See Finishes Section - Finishes for facing materials

• Core material: non-hygroscopic polyurethane foam or impact resistant honeycomb

• Heavy duty anodised aluminium door edgings c/w integrated astragal to leading edge

• Leaf weight with polyurethane infill: approx. 24 kg/m² excluding hardware

Frame Construction

• Frame profile: single rebate c/w integrated jacking channels

•  Frame profile size: 100mm x 67mm

• Frame material: heavy duty extruded aluminium sections

• Assembly method: butt jointed corners

• Threshold: stainless steel plate with or without extruded low-profile aluminium upstand

• Weather seal: integral polyurethane foam gasket

Fixing Method

• 2nd fix between structural opening reveals

• Integrated and adjustable jacking channel frame fixing system

• Suitable wall construction materials: brickwork, blockwork, concrete, steel or timber

Hardware

• Heavy duty stainless steel continuous hinges

• Single, 2 & 3-point locking systems

• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking options

• External key access with or without cylinder guard protection

• External padlockable hasp & staple devices

• Tower bolts or 2-point locking system to passive leaf

• Door closers or door stays

• Factory fitted unless otherwise stated

• External access via electro-mechanical access system

• Electro-mechanical access via pin code lock

Finishes

•  Standard aluminium frame and door edge section finish: Satin silver anodised. AA25.

• Alternative aluminium frame and door edge section finish: polyester powder coated in a range of BS/RAL colours

• Door leaf, side panel and over panel faces: GRP (Glass Reinforced Plastic), mill finished aluminium or polyester powder coated                        aluminium in a range BS/RAL colours

• GRP faces are pigmented throughout, UV stable and available in a range of textures

• Combinations of materials, finishes, textures and colours may be specified to each door leaf and panel face

Certification

• UKCA marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016

• Panic and emergency escape hardware certified in accordance with EN 1125: 2008 and EN 179: 2008

• Hinges certified in accordance with EN 1935: 2002

• Quality Management System certified to EN ISO 9001: 2015

• Environmental Management System certified to EN ISO 14001: 2015

• Occupational H&S Management System certified to EN ISO 45001: 2018



Example Configurations
