SR3 Doors (C5)

PS3 Stainless Steel Security Doorsets

Built on over 30 years of “fit and forget” manufacturing expertise, the PS3 has been engineered to deliver enhanced protection while maintaining exceptional durability and low maintenance. When we entered the steel security door market, our aim was not simply to produce another steel door, but to create a long-lasting security solution that avoids the corrosion issues often associated with conventional steel doors.

To achieve this, our entire product range is tested and certified in stainless steel, using 304 or 316 grade materials. Each doorset is mounted on full-length stainless steel continuous hinges and fitted with stainless steel locking furniture, ensuring outstanding strength, reliability, and resistance to rust. The result is a high-performance security doorset designed to be as close to maintenance-free as possible.

Certified Security Performance

The PS3 doorset is certified to LPS 1175 Issue 8, achieving:

• PS3 Security Rated SR3 (C5)
• Listed on Red Book Live

This certification verifies the doorset’s ability to withstand more determined attacks using a wider range of tools, making it suitable for higher-risk environments such as commercial premises, infrastructure sites, public buildings, and critical facilities.

See the complete BRE LPS1175 Issue 8 matrix

Extensive Design Flexibility

We designed the PS2 to offer:

• The broadest certified range of sizes
• The most comprehensive number of configurations
• The thinnest and lightest doorleaf construction

Our certification includes over 600 individually defined locking configurations, ranging from:

• Simple single-point locks
• Multi-point locking systems
• Advanced electro-mechanical locking solutions
• Full automation
•


Adaptable to Almost Any Opening

Using our fully tested and certified mullion and transom systems, the PS2  can be configured to suit a wide variety of apertures and layouts.

Additional options include:

• Louvre ventilation panels
• Security-rated vision panels integrated within the door leaf

Long-Term Confidence

Every PS3 doorset is supplied with a 20-year warranty (terms and conditions apply), giving you confidence in both performance and longevity.

Download the full data sheet.

Specifications

Market Leading Certified Features

• Largest door leaf size range, up to a colossal 1600mm in width and 3275mm in height
• Widest range of doorset configurations available
• Thinnest and lightest door leaves. Only 45mm thick and weighing no more than 45kg/m2. Less than half the weight of some of our competitors
• The greatest number of MICO High Security Locking Systems and functions listed in the LPCB Red Book for any doorset product with a choice of single point , 2-point or 3-point locking systems
• Unlimited structural opening sizes when specified with adjacent over panels and side panels
• Factory fitted hardware throughout
• Choice of alternative colours to each face of door leaf as standard
• No quibble, long term product warranty scheme


Certified Options

• LPS 1175: Issue 8 Security Rating SR3 (C5)
• Single, double or odd-leaf double doorset configurations
• Hinged or removable over panels
• Removable side panels
• Vision panels up to 1100mm wide x 1400mm high
• Louvre vents up to 900mm wide x 900mm high, with or without insect/vermin mesh

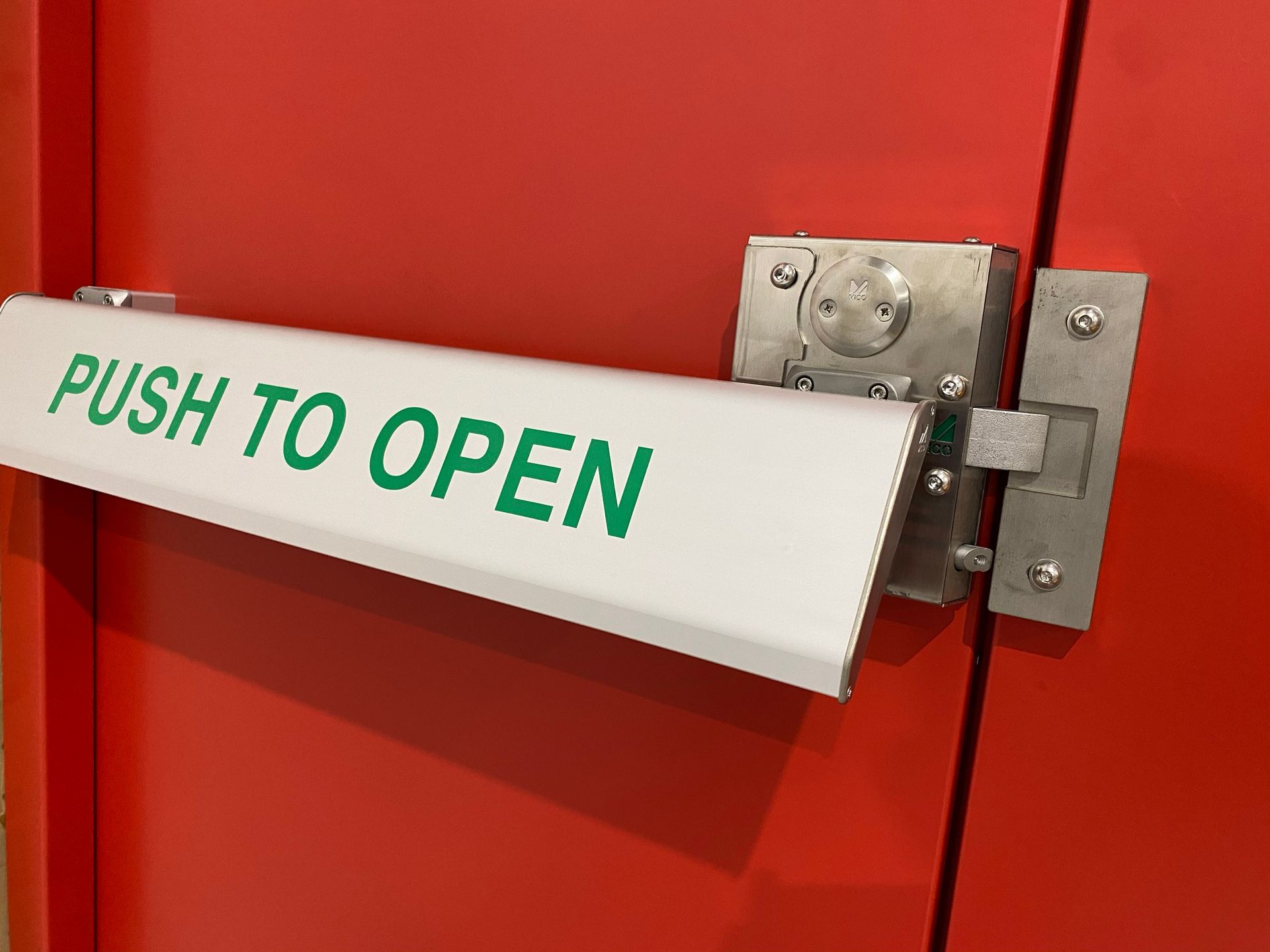

• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking functionality


Certified Performance

• CE marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016
• LPS 1175: Issue 8 Security Rating Classifications SR3 (C5)
• Secured by Design product listed and accredited


Configurations

• Single leaf outward opening security doorsets with or without side/over panels

• Double leaf outward opening security doorsets with or without side/over panels

Min/Max Structural Opening Sizes

Options

• Hinged or removable over panels, with removable transoms

• Removable side panels, with removable mullions

• Vision panels. Unit size range: 170mm to 1100mm wide & 170mm to 1400mm high

• Louvre vents with or without insect/vermin mesh. Unit size range: 125mm to 900mm wide & 125mm to 900mm high

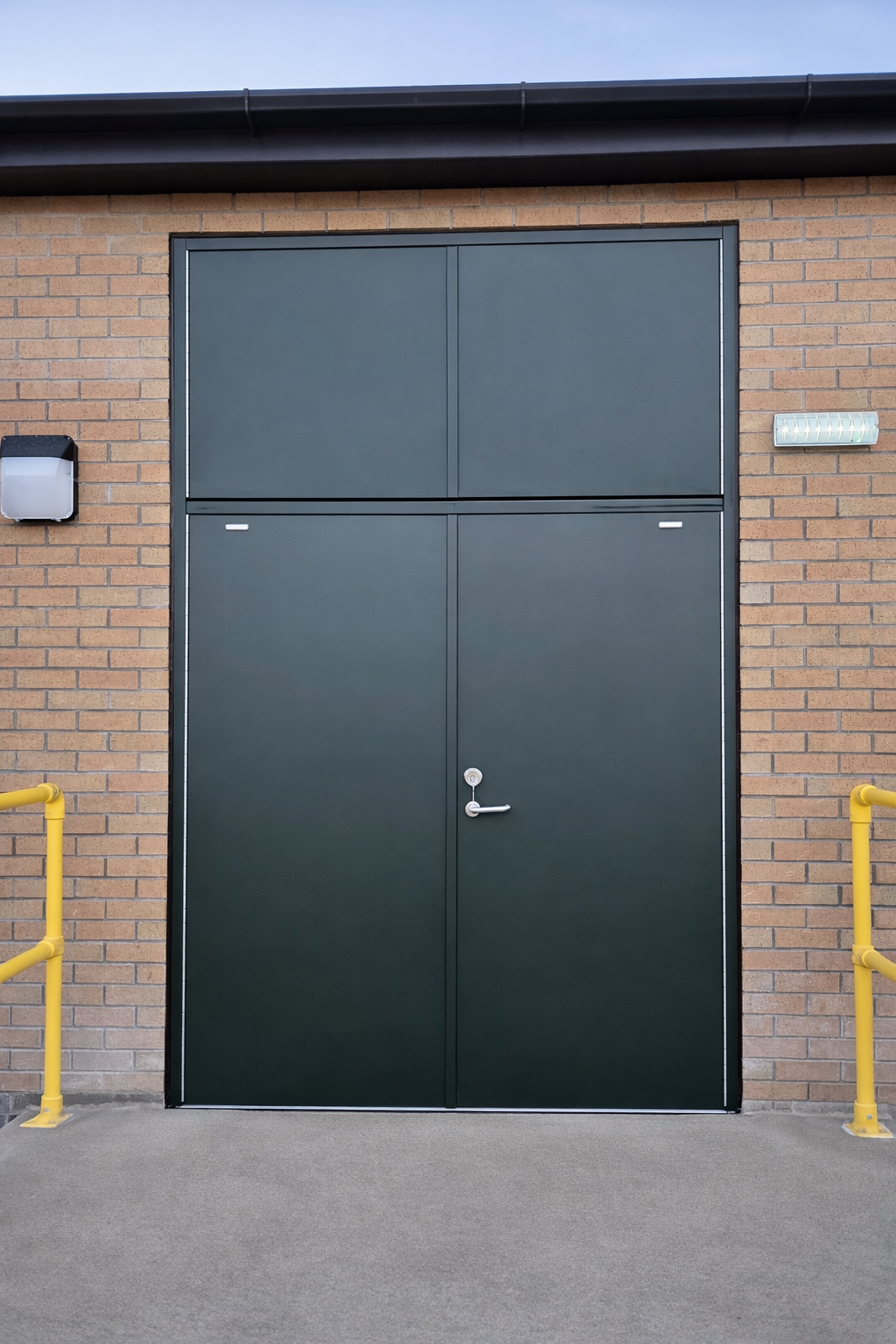

• Doors over doors which give you the ability to access the full opening

Leaf Construction

• Leaf thickness: 45mm

• Skin material: 1.2mm Grade 304 or 316 stainless steel

• Internal reinforcement material: attack resistant armoured steel

• Core material: impact resistant honeycomb, high-density mineral wool or polyurethane foam

• Anti-pry astragal to leading edge: 3mm Grade 304 or 316 stainless steel

• Leaf weight with honeycomb infill: approx. 45 kg/m² excluding hardware

Frame Construction

• Frame profile: single or double rebate

• Minimum profile size: 100mm x 70mm

• Frame material: 1.5mm Grade 304 or 316 stainless steel

• Assembly method: butt jointed and bolted corners

• Threshold: stainless steel or SAA low-profile versions. No threshold optional.

• Weather seal: silicone self-adhesive gasket

Fixing Method

• 2nd fix between structural opening reveals

• Shimmed or jacking channel frame fixing system options

• Suitable wall construction materials: brickwork, blockwork, concrete, steel or timber

Hardware

• Heavy duty stainless steel continuous hinges

• MICO Elite or Abryll single point locking systems

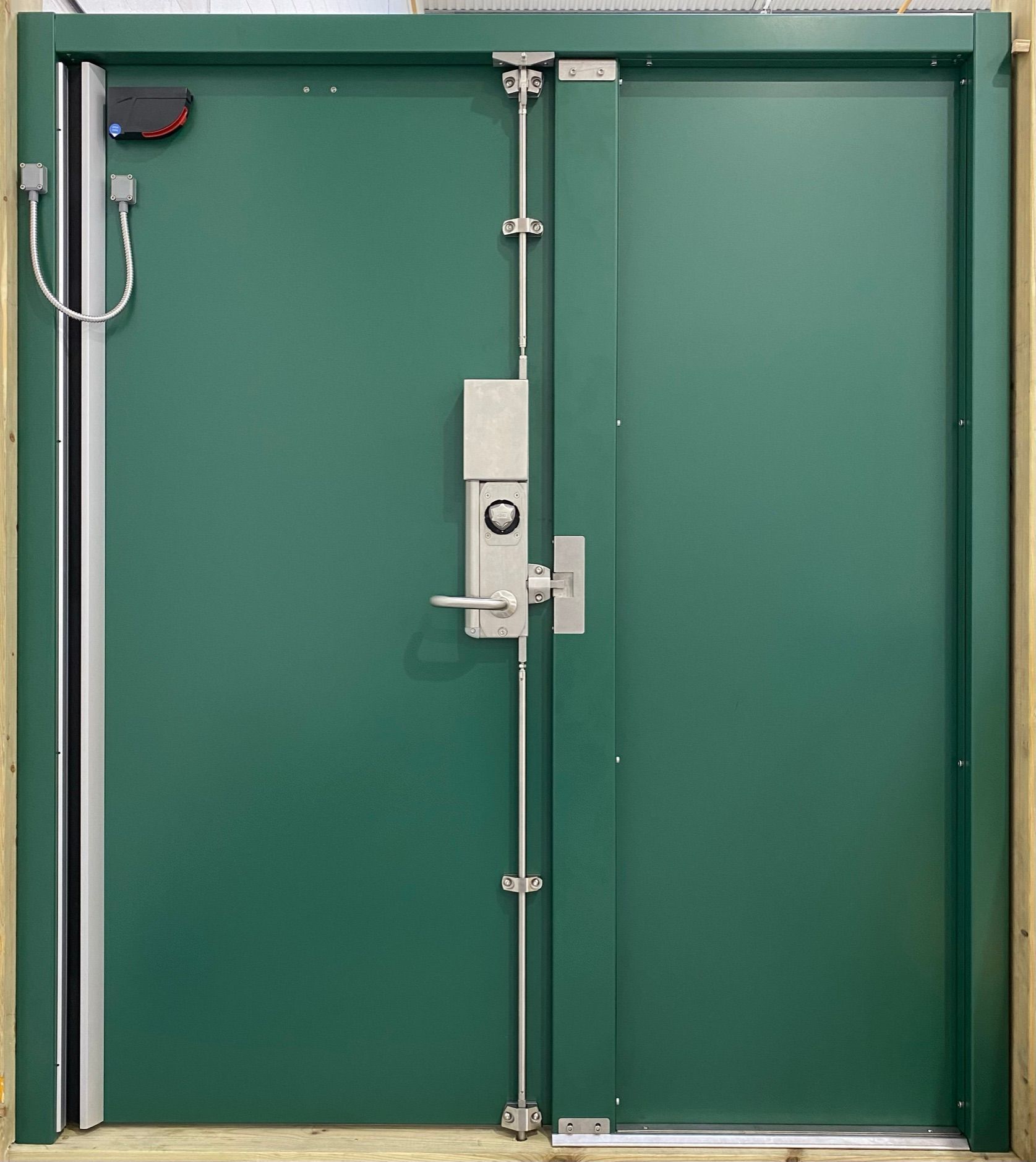

• MICO INT Multipoint 2 & 3-point locking systems

• Surelock McGill Sterling single point locking systems

• Surelock McGill Slimline 2 & 3-point locking systems

• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking options

• External key access with MICO USCH or Surelock McGill GSS cylinder guard protection

• External padlockable hasp & staple devices or MICO MLK, MICO ELK or Surelock McGill LEO outside access devices

• Tower bolts or MICO MSR, MICO INT Multipoint or Surelock McGill Slimline 2-point locking systems to passive leaf

• Door closers or door stays

• Factory fitted unless otherwise stated

Finishes

• Polyester powder coat to a range of standard or bespoke colours. 30% gloss level

• Brushed, polished or patterned stainless steel

Certification

• UKCA marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016

• LPS 1175: Issue 8 Security Rating Classification SR3 (C5) Certificate No. 1570b

• Secured by Design product listed and accredited

• Thermal transmittance (U-values) certified in accordance with EN ISO 10077-1: 2017 U-value for single and double doorsets: 3.0 W/m²·K

• Panic and emergency escape hardware certified in accordance with EN 1125: 2008 and EN 179: 2008

• Hinges certified in accordance with EN 1935: 2002

• Quality Management System certified to EN ISO 9001: 2015

• Environmental Management System certified to EN ISO 14001: 2015

• Occupational H&S Management System certified to EN ISO 45001: 2018

Configurations

If you would like to know more about our security door solutions and how we can help you reduce your through-life costs and carbon emissions, please send us your details and the issues you would like us to address.
