Emergency Exit Doors

Long-Term Protection Without the Long-Term Maintenance

Built on over 30 years of "fit and forget" manufacturing expertise, the TS Designs security doorsets have been specifically engineered to meet the demanding requirements of many of the most challenging environments. Designed for long-term performance with minimal maintenance, the doorsets help asset owners reduce whole-life costs while ensuring reliable protection and security.

When developing our door range, our objective was clear, to provide a genuinely durable solution capable of withstanding the harshest  conditions, while eliminating the corrosion issues often associated with these environments.

The result is a doorset that delivers reliable protection, reduced maintenance requirements and a long operational lifespan, making it the ideal choice forall infrastructure assets.

Our doors offer:

• Lower whole-life costs with no ongoing maintenance
• Fewer reactive call-outs and assured long-term performance
• Faster, more straightforward on-site installation
• Enhanced asset security and network resilience
• A 20-year warranty to support long-term client commitments



Extensive Design Flexibility

We designed our doors to offer:

· The broadest certified range of sizes

· The most comprehensive number of configurations

· The thinnest and lightest doorleaf construction

Our doors can be fitted with over 600 individually defined locking configurations, ranging from:

· Simple single-point locks

· Multi-point locking systems

· Advanced electro-mechanical locking solutions

· Full automation

Adaptable to Almost Any Opening

Using our fully tested mullion and transom systems can be configured to suit a wide variety of apertures and layouts.

Additional options include:

· Louvre ventilation panels

· Security-rated vision panels integrated within the door leaf

Long-Term Confidence

Every doorset is supplied with a 20-year warranty (terms and conditions apply), giving you confidence in both performance and longevity.

Download the full data sheet.

Specifications

Market Leading Certified Features

• Largest door leaf size range, up to a colossal 1600mm in width and 3275mm in height
• Widest range of doorset configurations available
• Thinnest and lightest door leaves. Only 45mm thick and weighing no more than 45kg/m². Less than half the weight of some of our competitors
• The greatest number of MICO High Security Locking Systems and functions listed in the LPCB Red Book for any doorset product with a choice of single point , 2-point or 3-point locking systems
• Unlimited structural opening sizes when specified with adjacent over panels and side panels
• Factory fitted hardware throughout
• Choice of alternative colours to each face of door leaf as standard
• No quibble, long term product warranty scheme


Certified Options

• Single, double or unequal double doorset configurations
• Hinged or removable over panels
• Removable side panels
• Vision panels up to 1100mm wide x 1400mm high
• Louvre vents up to 900mm wide x 900mm high, with or without insect/vermin mesh
• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking functionality

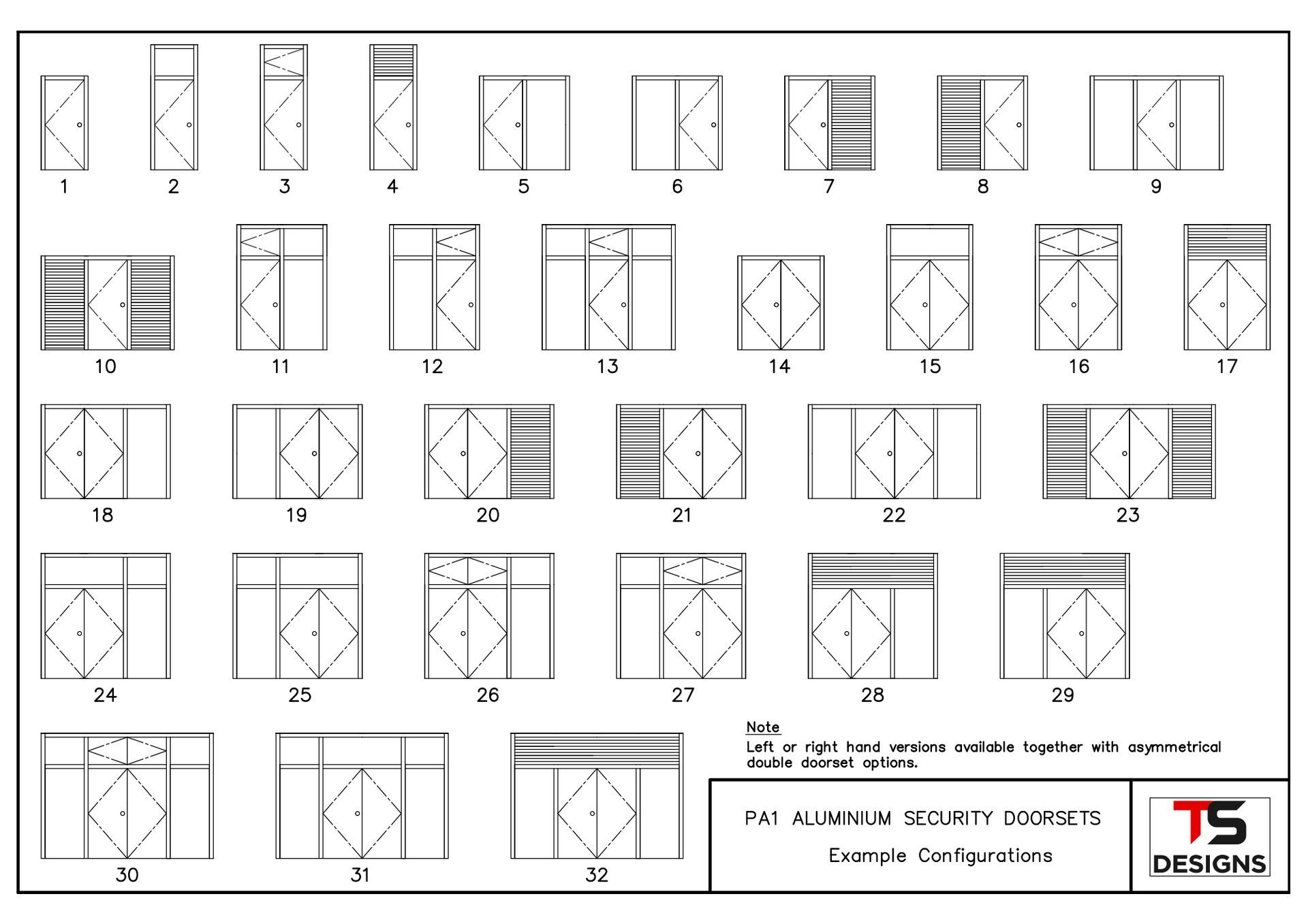

Configurations

• Single leaf outward opening security doorsets with or without side/over panels

• Double leaf outward opening security doorsets with or without side/over panels

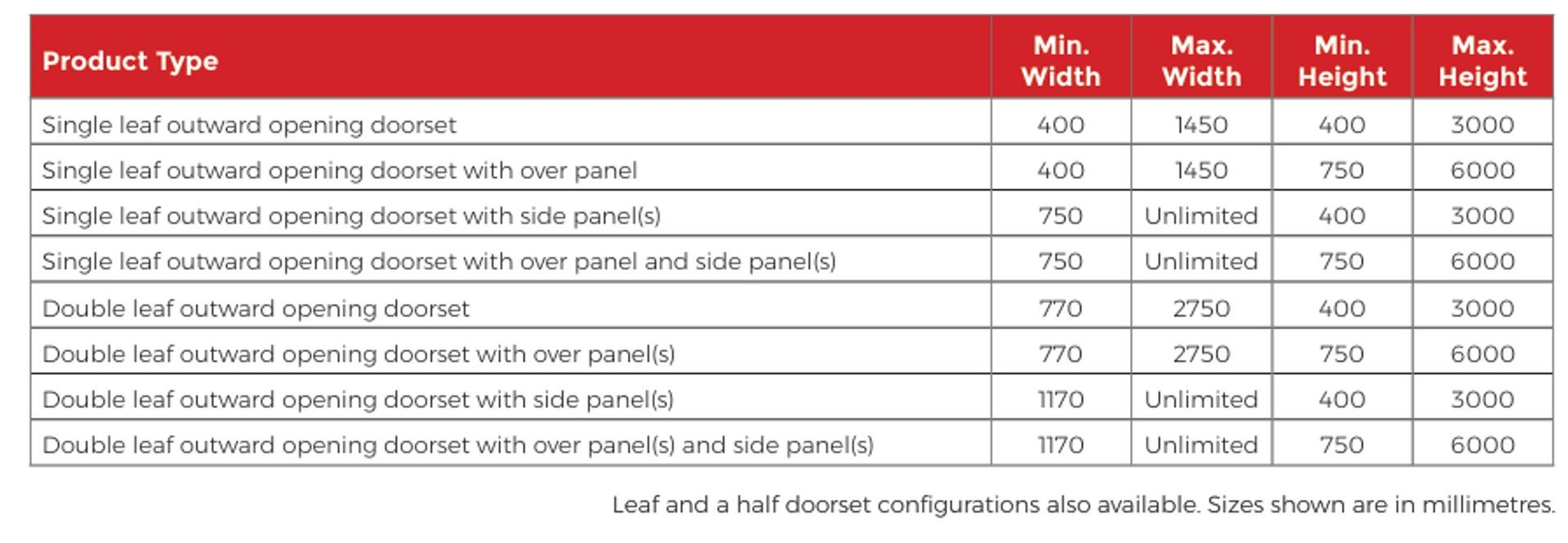

Min/Max Structural Opening Sizes

Options

• Hinged or removable over panels, with removable transoms

• Removable side panels, with removable mullions

• Vision panels. Unit size range: 170mm to 1100mm wide & 170mm to 1400mm high

• Louvre vents with or without insect/vermin mesh. Unit size range: 125mm to 900mm wide & 125mm to 900mm high

• Doors over doors which give you the ability to access the full opening

• Cable access ports

Leaf Construction

• Leaf thickness: 44mm

• Leaf construction: two 3mm aluminium interlocking trays

• See Finishes Section - Finishes for facing materials

• Core material: non-hygroscopic polyurethane foam or impact resistant honeycomb

• Heavy duty anodised aluminium door edgings c/w integrated astragal to leading edge

• Leaf weight with polyurethane infill: approx. 24 kg/m² excluding hardware

Frame Construction

• Frame profile: single rebate c/w integrated jacking channels

•  Frame profile size: 100mm x 67mm

• Frame material: heavy duty extruded aluminium sections

• Assembly method: butt jointed corners

• Threshold: stainless steel plate with or without extruded low-profile aluminium upstand

• Weather seal: integral polyurethane foam gasket

Fixing Method

• 2nd fix between structural opening reveals

• Shimmed or jacking channel frame fixing system options

• Suitable wall construction materials: brickwork, blockwork, concrete, steel or timber

Hardware

•  Heavy duty stainless steel continuous hinges

• Single, 2 & 3-point locking systems

• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking options

• External key access with or without cylinder guard protection

• External padlockable hasp & staple devices

• Tower bolts or 2-point locking system to passive leaf

• Door closers or door stays

• Factory fitted unless otherwise stated

• External access via electro-mechanical access system

• Electro-mechanical access via pin code lock

Finishes

•  Standard aluminium frame and door edge section finish: Satin silver anodised. AA25.

• Alternative aluminium frame and door edge section finish: polyester powder coated in a range of BS/RAL colours

• Door leaf, side panel and over panel faces: GRP (Glass Reinforced Plastic), mill finished aluminium or polyester powder coated            aluminium in a range BS/RAL colours

• GRP faces are pigmented throughout, UV stable and available in a range of textures

• Combinations of materials, finishes, textures and colours may be specified to each door leaf and panel face

Certification

• UKCA marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016

• Panic and emergency escape hardware certified in accordance with EN 1125: 2008 and EN 179: 2008

• Hinges certified in accordance with EN 1935: 2002

• Quality Management System certified to EN ISO 9001: 2015

• Environmental Management System certified to EN ISO 14001: 2015

• Occupational H&S Management System certified to EN ISO 45001: 2018



Configurations

If you would like to know more about our security door solutions and how we can help you reduce your through-life costs and carbon emissions, please send us your details and the issues you would like us to address.
