Wall Mounted Louvres with   Cable Ports

Secure ventilation and cable access in one bespoke solution

TS Designs wall mounted louvres with integrated cable port provide a purpose-built solution for electrical infrastructure where permanent ventilation and temporary cable access are both required. Manufactured from aluminium that will not corrode, each system is made to suit the individual structural opening and incorporates a lockable cable port, allowing generator and test cables to pass securely through the louvre while the building remains locked.

This allows cables to be left connected without compromising the security of the building or requiring the main access doors to remain open. By incorporating the cable access point within the wall mounted louvre rather than the main doorway, cables can also be kept away from the primary access route, helping to avoid trip hazards and maintain clear access into and out of the building. The cable port incorporates a stainless steel roller behind the opening hatch, allowing cables to be pulled through smoothly while helping to protect them from damage during use.

The solution was developed and approved in conjunction with GTC and has also been supplied for other IDNO and DNO applications, providing a practical cable access solution developed specifically around the requirements of electrical infrastructure.

Market Leading Features

• Integrated lockable cable access port
• Allows generator and test cables to remain connected while the building stays locked and secure
• Keeps temporary cables away from the main door access area
• Helps reduce potential trip hazards around the primary entrance
• Stainless steel roller helps protect cables as they are pulled through the opening
• Permanent ventilation and cable access within one solution
• Bespoke manufactured to suit individual structural openings
• Huge range of sizes and configurations
• Aluminium construction that will not corrode
• Four-sided aluminium wall sleeve
• No externally accessible louvre fixings
• Sleeve fully lines the structural opening
• Flush or recessed installation for a clean finish
• Developed and approved in conjunction with GTC
• Supplied for other IDNO and DNO applications

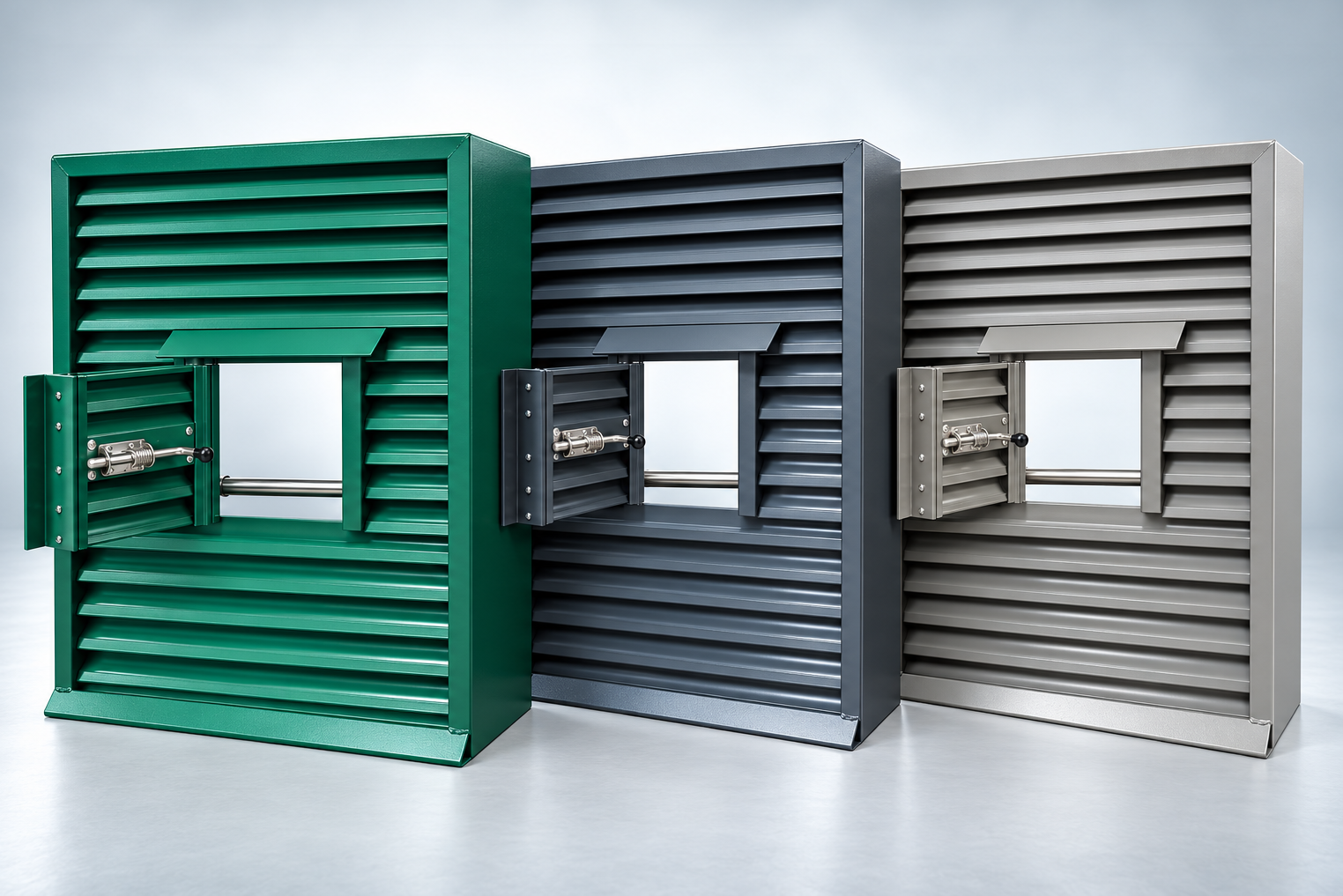

Integrated Lockable Cable Port

Keep cables connected. Keep the building secure.

The integrated cable port provides a dedicated access point for generator and test cables without requiring the main doors to be left open.

When required, the lockable hatch can be opened and cables passed through the louvre into the building. Once connected, the main building access can remain closed and locked, maintaining security while equipment is in operation.

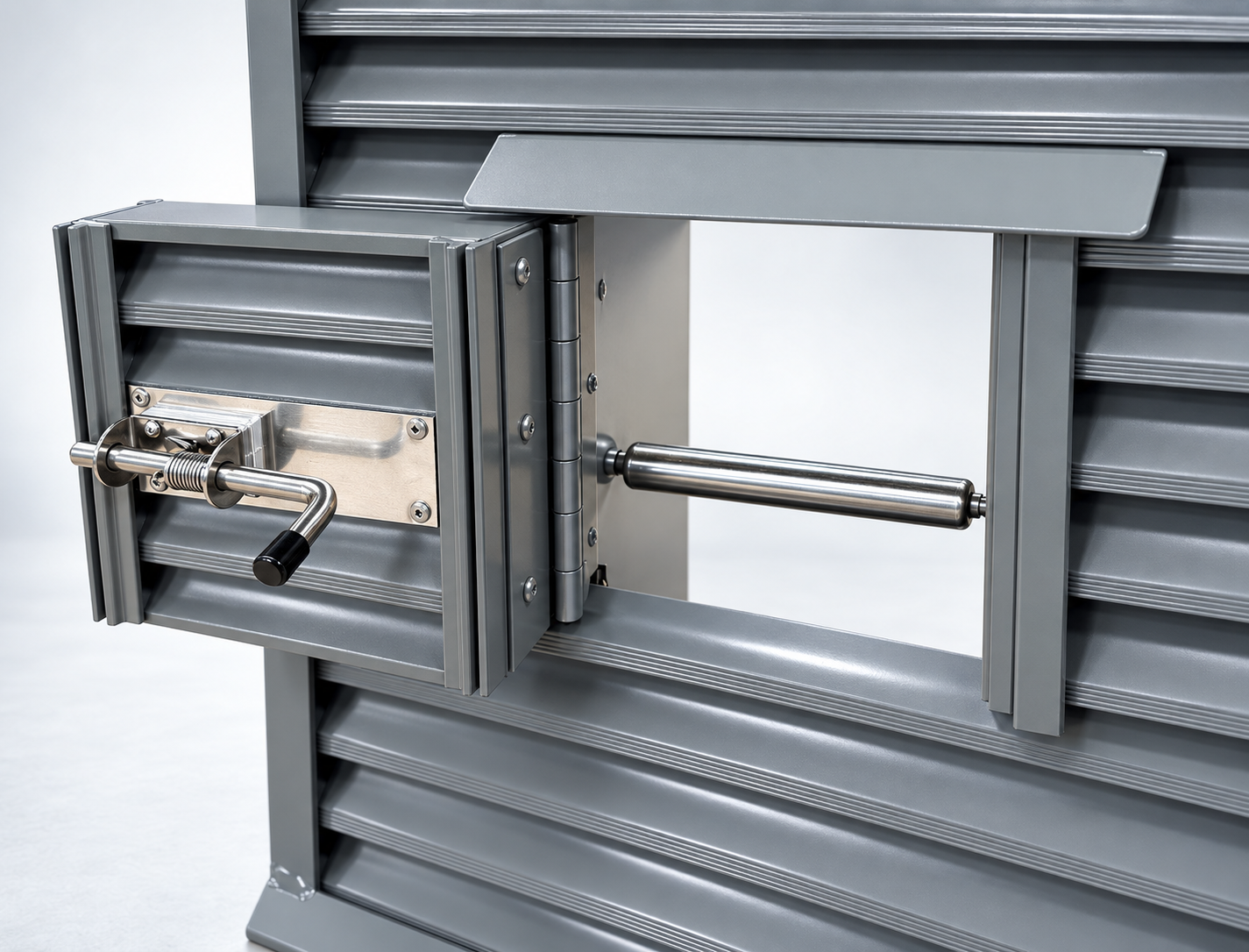

A stainless steel roller positioned behind the opening hatch provides a smooth surface for cables to pass over, helping prevent damage as cables are pulled through or removed.

Positioning the cable port within the wall mounted louvre also keeps cables away from the main pedestrian access area, helping maintain a clear route through the doors and reducing potential trip hazards.

Four-Sided Wall Sleeve

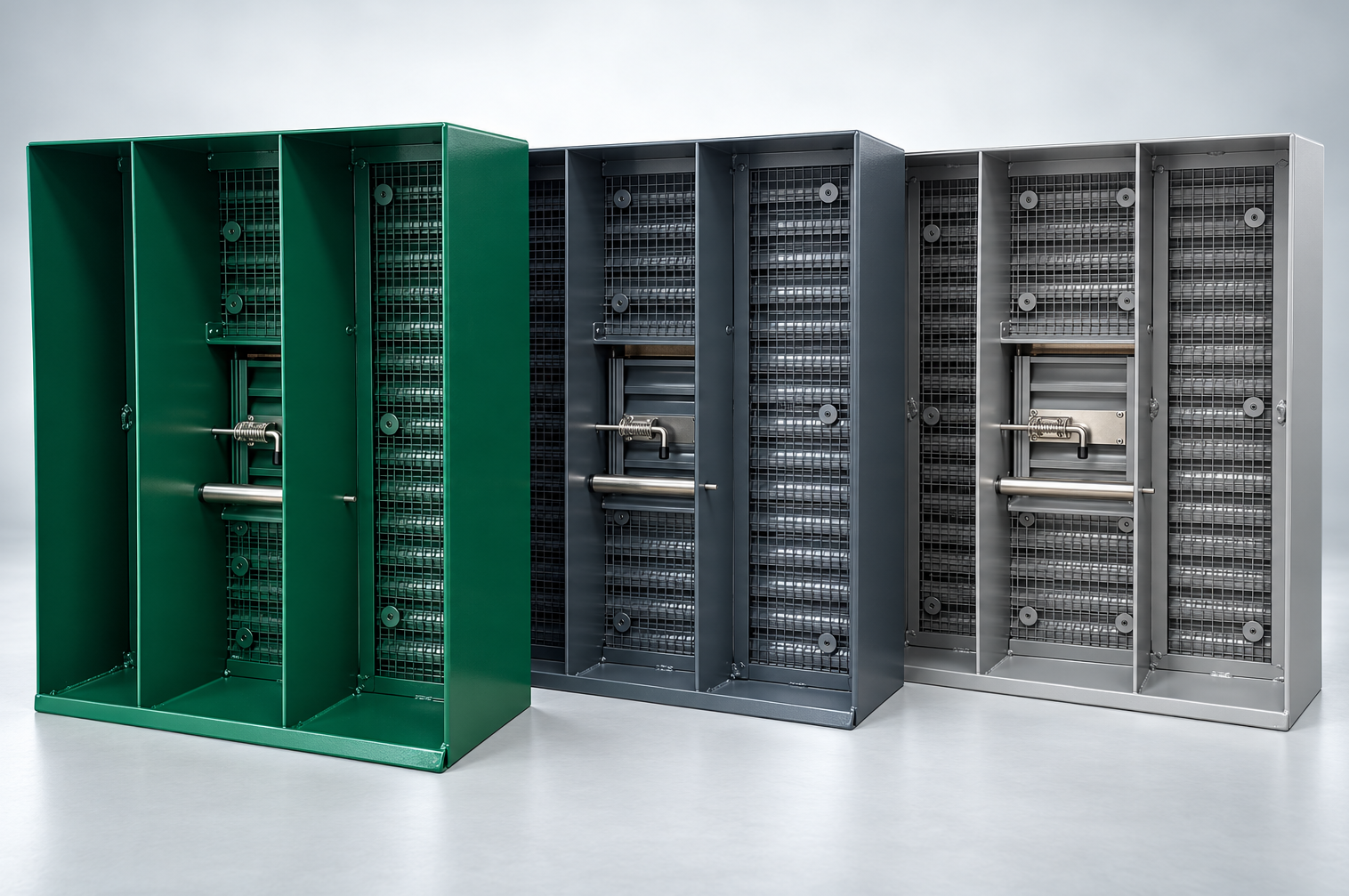

As with our standard wall mounted louvres, the cable port louvre is housed within a bespoke four-sided aluminium sleeve manufactured to suit the depth of the structural opening. The sleeve fully lines the aperture, while fixing through the internal face means there are no externally accessible louvre fixings. The flangeless design allows the unit to be installed flush with the external brickwork or recessed within the opening for a neat, clean finish.

Louvre Construction

The surrounding louvre uses our extruded aluminium blade with an inverted ‘V’ profile and concave faces, providing permanent ventilation while eliminating direct line of sight through the louvre. The aluminium construction will not corrode and can be supplied with anti-vermin or stainless steel insect mesh to suit the project requirements.

Applications

Developed for electrical and utility infrastructure

The integrated cable port system is designed for applications where generator, test or temporary power cables need to pass into a secure building while allowing the main access doors to remain closed and locked.

Typical applications include electrical substations, transformer rooms, switch rooms and switchgear buildings, standby generator connections, temporary power applications, testing and commissioning environments, utility compounds, battery and energy storage infrastructure, and other secure plant or electrical buildings requiring dedicated cable access. The system is particularly suited to DNO and IDNO infrastructure, having been developed and approved in conjunction with GTC and subsequently supplied for other IDNO and DNO applications.

Bespoke Sizes, Configurations & Finishes



Each cable port louvre can be manufactured around the structural opening and individual project requirements, with a wide range of louvre sizes, sleeve depths, configurations and finishes available. This allows the ventilation area and cable access arrangement to be developed around the building rather than relying on a standard off-the-shelf solution.

Need secure temporary cable access for your substation or electrical building? Our team can help develop a bespoke wall mounted louvre and cable port solution around your ventilation, cable access and structural opening requirements.

Specifications

Market Leading Features

• Contains no organic materials, no ferrous components, and no painted parts. eliminating traditional issues associated with timber doorsets, including rot, warping, twisting, and sticking doors
• Removes the problem of rust associated with steel doorsets.
• Being essentially a modular system, the PA1 is available in virtually limitless configurations.
• In addition to single and double leaf doorsets, we offer a wide range of mullions, transoms, and removable solid or louvred panels to suit almost any application.
• The GRP (Glass Reinforced Plastic) faces are pigmented throughout their full thickness
• If surface damage occurs, the same colour remains visible beneath.
• The pigments used are UV stable for maximum longevity.
• Available in a range of surface textures, the most common specification is our "cracked ice" anti-vandal finish
• Absorbs high levels of vandalism, abuse and everyday wear and tear without visible impact.


Options

• The door core is constructed from two interlocking trays of 3mm aluminium sheet filled with inert polyurethane foam.

• This closed-cell, non-hygroscopic foam provides excellent thermal performance, delivering the compressive strength required to withstand significant impact and attack



• Every door leaf is mounted on a full-length heavy-duty continuous stainless-steel hinge, providing exceptional durability and long-term reliability.


Configurations

• Single leaf outward opening security doorsets with or without side/over panels

• Double leaf outward opening security doorsets with or without side/over panels

Min/Max Structural Opening Sizes

Options

• Hinged or removable over panels, with removable transoms

• Hinged or removable side panels, with removable mullions

• Vision panels to customer preferred size or fully maximised

• Louvre vents to customer preferred size or fully maximised. With or without insect/vermin mesh

• Cable access ports

Leaf Construction

• Leaf thickness: 44mm

• Leaf construction: two 3mm aluminium interlocking trays

• See Finishes Section - Finishes for facing materials

• Core material: non-hygroscopic polyurethane foam or impact resistant honeycomb

• Heavy duty anodised aluminium door edgings c/w integrated astragal to leading edge

• Leaf weight with polyurethane infill: approx. 24 kg/m² excluding hardware

Frame Construction

• Frame profile: single rebate c/w integrated jacking channels

•  Frame profile size: 100mm x 67mm

• Frame material: heavy duty extruded aluminium sections

• Assembly method: butt jointed corners

• Threshold: stainless steel plate with or without extruded low-profile aluminium upstand

• Weather seal: integral polyurethane foam gasket

Fixing Method

• 2nd fix between structural opening reveals

• Integrated and adjustable jacking channel frame fixing system

• Suitable wall construction materials: brickwork, blockwork, concrete, steel or timber

Hardware

• Heavy duty stainless steel continuous hinges

• Single, 2 & 3-point locking systems

• Panic escape, emergency escape, manual deadlocking, automatic deadlocking or electro-mechanical deadlocking options

• External key access with or without cylinder guard protection

• External padlockable hasp & staple devices

• Tower bolts or 2-point locking system to passive leaf

• Door closers or door stays

• Factory fitted unless otherwise stated

• External access via electro-mechanical access system

• Electro-mechanical access via pin code lock

Finishes

•  Standard aluminium frame and door edge section finish: Satin silver anodised. AA25.

• Alternative aluminium frame and door edge section finish: polyester powder coated in a range of BS/RAL colours

• Door leaf, side panel and over panel faces: GRP (Glass Reinforced Plastic), mill finished aluminium or polyester powder coated                        aluminium in a range BS/RAL colours

• GRP faces are pigmented throughout, UV stable and available in a range of textures

• Combinations of materials, finishes, textures and colours may be specified to each door leaf and panel face

Certification

• UKCA marked in accordance with external door standard EN 14351-1: 2006 & A2: 2016

• Panic and emergency escape hardware certified in accordance with EN 1125: 2008 and EN 179: 2008

• Hinges certified in accordance with EN 1935: 2002

• Quality Management System certified to EN ISO 9001: 2015

• Environmental Management System certified to EN ISO 14001: 2015

• Occupational H&S Management System certified to EN ISO 45001: 2018



Example Configurations

If you would like to know more about our security door solutions and how we can help you reduce your through-life costs and carbon emissions, please send us your details and the issues you would like us to address.
